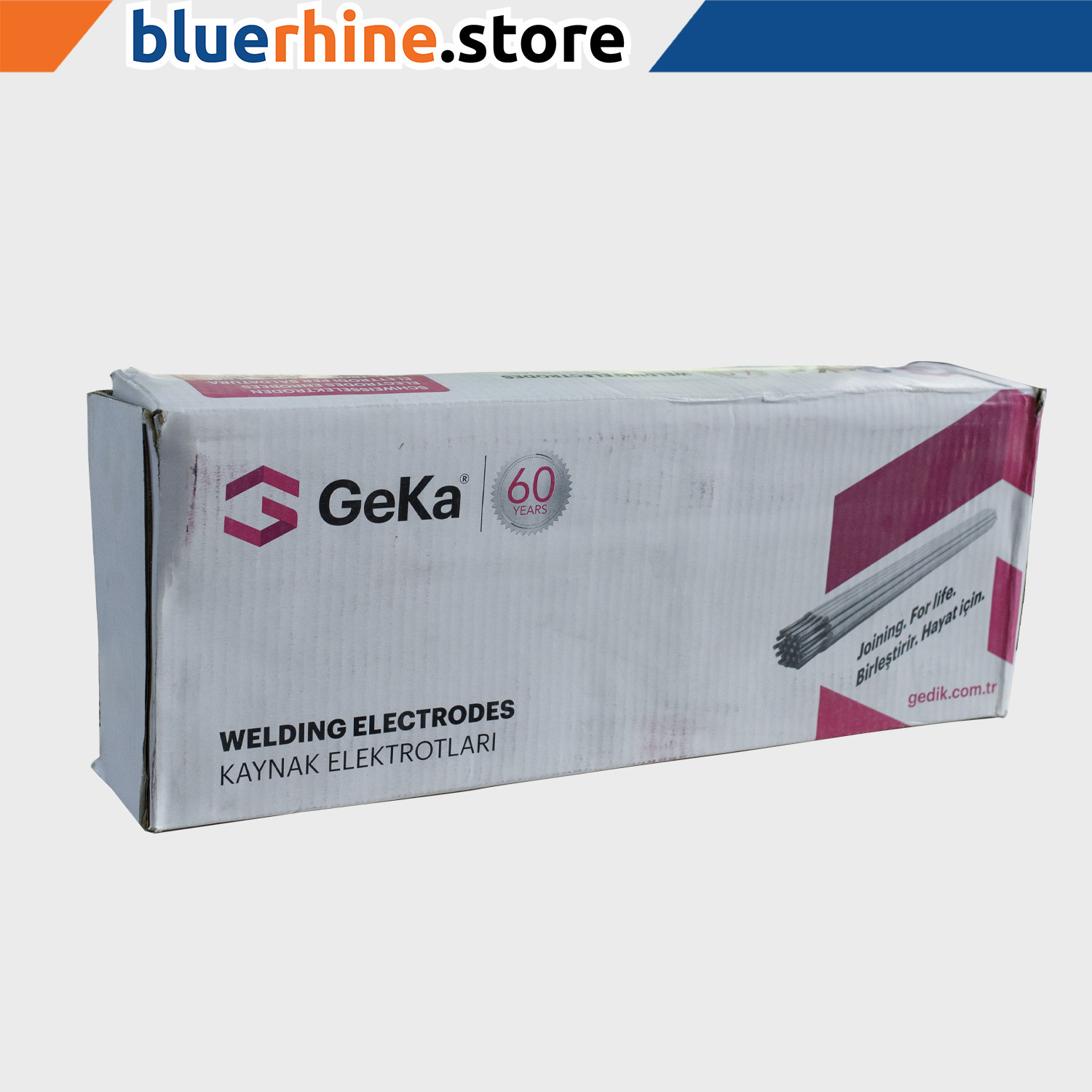

MS Welding Electrode Laser B50(V/P)(E7018-1-GEKA) 2.5 MM x 350 MM x 20 Kg(5Kg x 4Pkt)

Low-hydrogen vacuum-packed electrode suitable for out-of-position welding. Excellent strength and toughness for use in various industry segments, also used for buffer layers when building up high-carbon steels. Weld deposits with very low hydrogen content and metal recovery of about 110%.

Features and Applications

• Suitable for use in out-of-position welding, except for welding at the vertical down position
• Excellent strength and toughness
• Suitable for use in the fields of steel constructions, boilers, containers, machine manufacturing and vertical construction, as well as for use in welding low-purity and high-carbon steels
• Suitable for the formation of welding buffer layers when building up high-carbon steels
• Weld deposits with very low hydrogen content
• Weld metal recovery of about 110
• Requirement of re-drying for a minimum 2 hours at temperatures between 300°C and 350°C
• Vacuum-packed electrodes

Standards:

• TS EN ISO 2560-A: E 42 4 B 42 H5
• EN ISO 2560-A: E 42 4 B 42 H5
• AWS A5.1: E 7018 H4
• AWS A5.1: E 7018-H4R

Typical Base Material Grades:

S235JR-E395,E335,S235J2G3-S355J2G3,C22,C35,P235T1-P355T1,P235T2,P355T2,L210-L360,L290MB-L360MB,P235G1TH,P255G1TH,P235GH-P295GH,S235JRS1-S235J4S,S315G1S-S355G3S,S255N-S355N,P255NH-P355NH,S255NL-S355NL,GE200-GE300.

API 5L: A, B, X42, X46, X52, X56, X60

Features and Applications:

• Suitability for use in out-of-position welding except for welding at the vertical down position.
• Excellent strength and toughness.
• • Suitability for use in the fields of steel constructions, boilers, containers, machine manufacturing and shipbuilding, as well as for use in welding low-purity and high-carbon steels.
• Suitability for the formation of welding buffer layers when building up high-carbon steels.
• Weld deposit with very low hydrogen content.
• Weld metal recovery of about 120%
• Requirement of re-drying for a minimum of 2 hours at temperatures between 300 degrees centigrade and 350 degrees centigrade.
