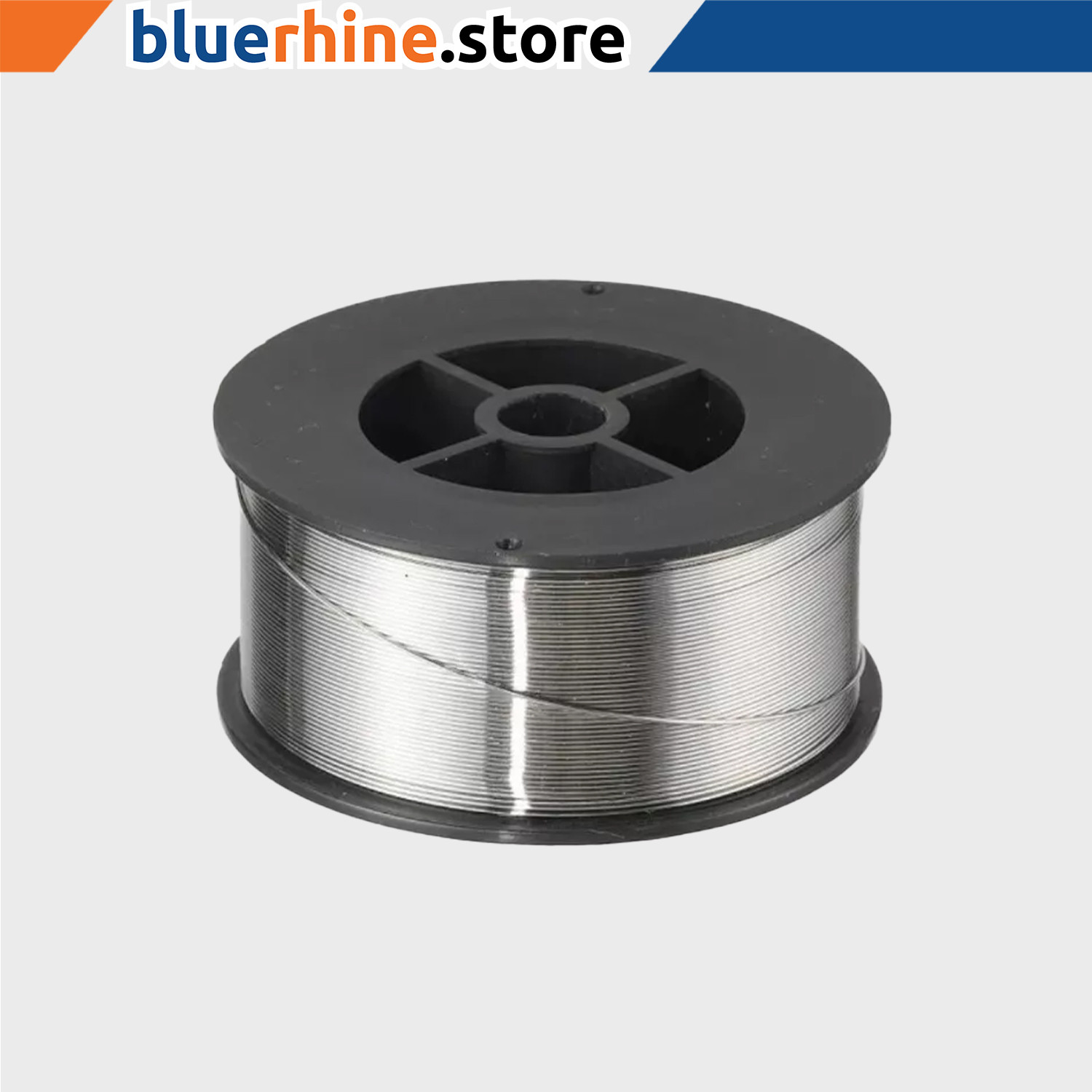

Aluminium MIG welding wire(ER5356-CROSSWELD) 1 MM x 6 Kg/Roll

ER5356 materials are used mainly for welding aluminium of like composition. This type is also useful if colour match is important after anodizing, the proper choice of aluminium filler metal mainly depends on the base metal properties to be achieved and the welding technique.

The proper choice of aluminium filler metal mainly depends on the base metal properties to be achieved and the welding technique. Post-weld cracking, corrosion resistance and the behaviour under elevated temperature also need to be taken into consideration.

Cracking usually can be minimised by choosing a filler metal alloy of higher alloy content than the base metal.

Standards:

• TS EN ISO 18273 - S AI 5356 (AIMg5Cr(A)
• EN ISO 18273 - S AI 5356 (AIMg5Cr(A)
• AWS A5 10 – ER 5356

Typical Base Material Grades:

AIMg 5, AIMg 4.5, G-AIMg 5, G-AIMg 10, AIMgSi 1, G-AIMg 3(Cu), AIMg 2.5Mn, AIMg 2 Mn 0.8, AIMg 3, AIMg 3 Si, G-AIMg 3, ALMg 4.5 Mn, G-AIMg 3 Si 0.5, AIMgSi 0.7, AIMgSi 0.8, AIMgSi 0.8, AIMgSi 1 Cu, AIZN 4.5 Mg 1.

Features and Applications:

• It is used for joining aluminium alloys that include over 3% Mg. resistance to seawater
• Application field is cup and boilers, columns, and marine applications.
• Required use of At He or Ar+He gas as shielding gas.
• It is recommended that preheating to 150 degrees centigrade be done before welding plates thicker than 10 MM.

Available Thickness:

0.80 MM, 1 MM, 1.2 MM & 1.6 MM
