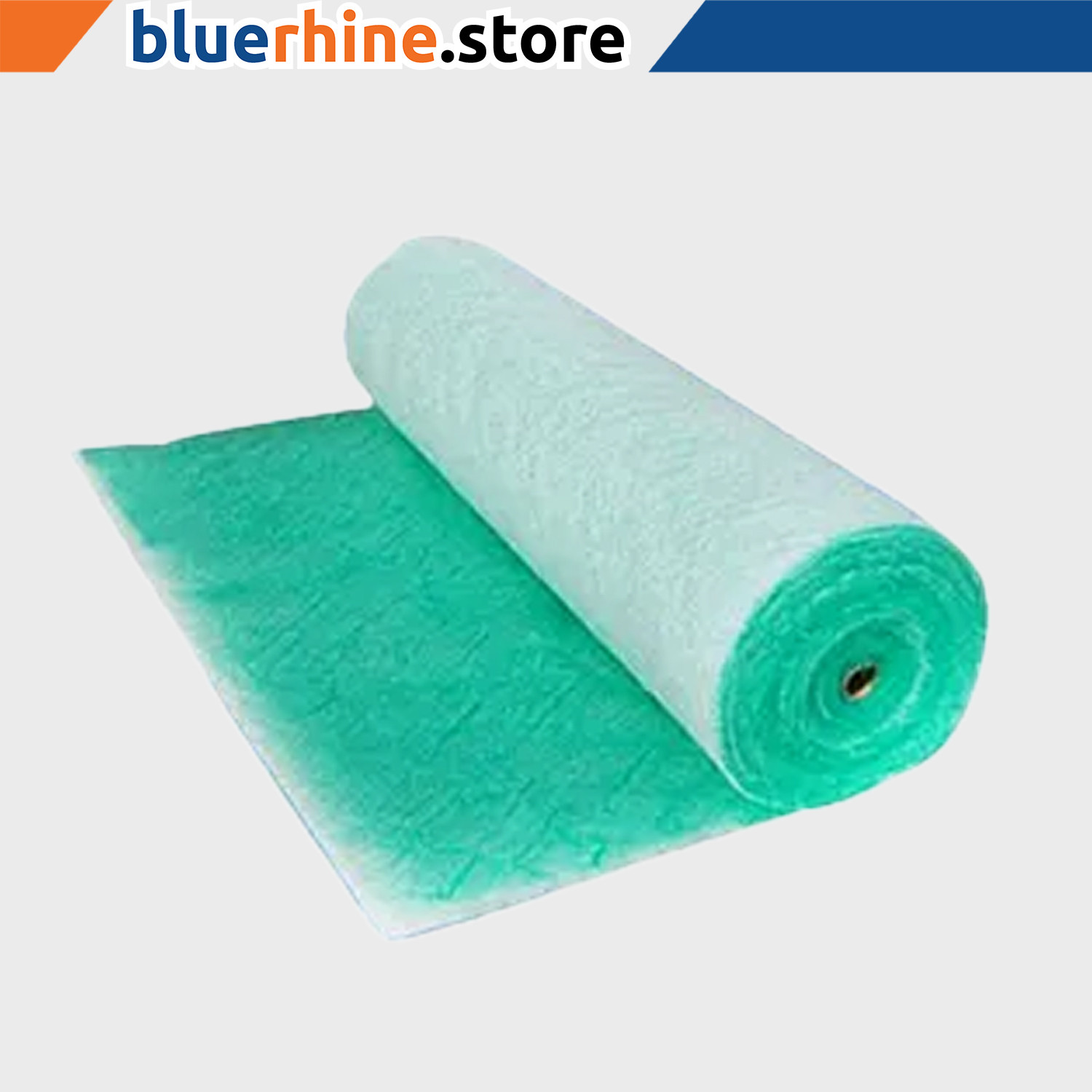

Floor Filter(G4) Fiber Glass Media 100 MM x 2 Mtr x 20 Mtr

Clean Air Paint Stop Filter is a green-white floor filter for spray booths and exhaust extractors, such as filtration walls, with an elastic fibre structure and a structure which becomes denser near the fresh air side. The special formation of the glass fibre prevents the medium from being pressed together, even when partially saturated, and therefore favours a high separation performance. Due to the optimal spray-dust separation (up to 98% spray-dust) of Clean Air Paint Stop Filter, exhaust extractors, fans and motors are protected against paint sediment. This filter has a thickness of approx100mm (basis weight approx. 450 g/m²), is temperature resistant up to 170° C. AVTT

Technical Data

• For spray booths and exhaust extractors such as filtration walls
• Up to 98 % spray-dust separation
• Temperature resistant up to 170°C, silicone-free, acetone resistant
• Dust holding capacity: 4700 g/m2
• For the protection of paint sediment on exhaust extractors, motors and fans
• Green-white floor filter with elastic fibre structure
• Basis weight approx. 450 g/m2
• Rated air flow: 7200 m3/h
• According to DIN EN 779: G4 (EU4)
